Mitigating Structural Fatigue via Optimized Laminate Architecture
Defending component integrity through high-precision CAD construction, controlled V_f ratios, and the dimensional persistence of CNC-machined master models.
The Risk:
Structural fatigue and interlaminar shear failure in high-load environments often originate from improper fiber orientation or inadequate lamination schedules that fail to account for localized stress concentrations.

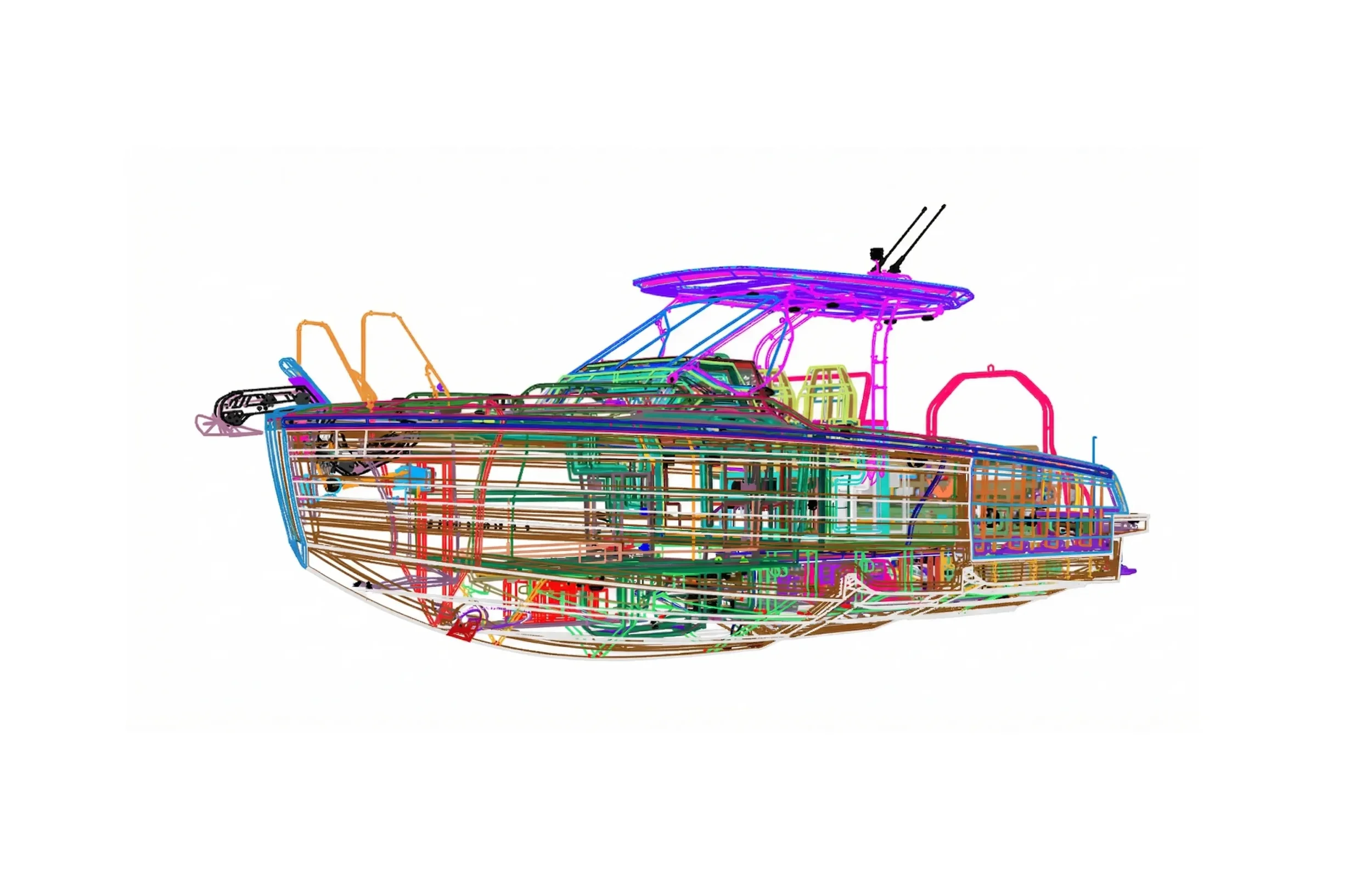

Structural Optimization & CAD Construction
At Ultramarin, conceptual design is an exercise in structural optimization. Our engineering team performs rigorous calculations to define the physical-mechanical requirements of every component before a single layer of fiber is laid. We utilize CAD construction to develop precise lamination schedules, focusing on glass-vinylester, epoxy resins, and carbon-fiber matrices. By calculating the specific mechanical stresses—such as slamming pressures in marine hulls or torsional loads in automotive superstructures—we define the target V_f (Fiber Volume Fraction) and ensure the achievement of target T_g (Glass Transition Temperature) through controlled cross-link density. This phase is critical for the mitigation of resin-rich zones that compromise the stiffness-to-weight ratio.

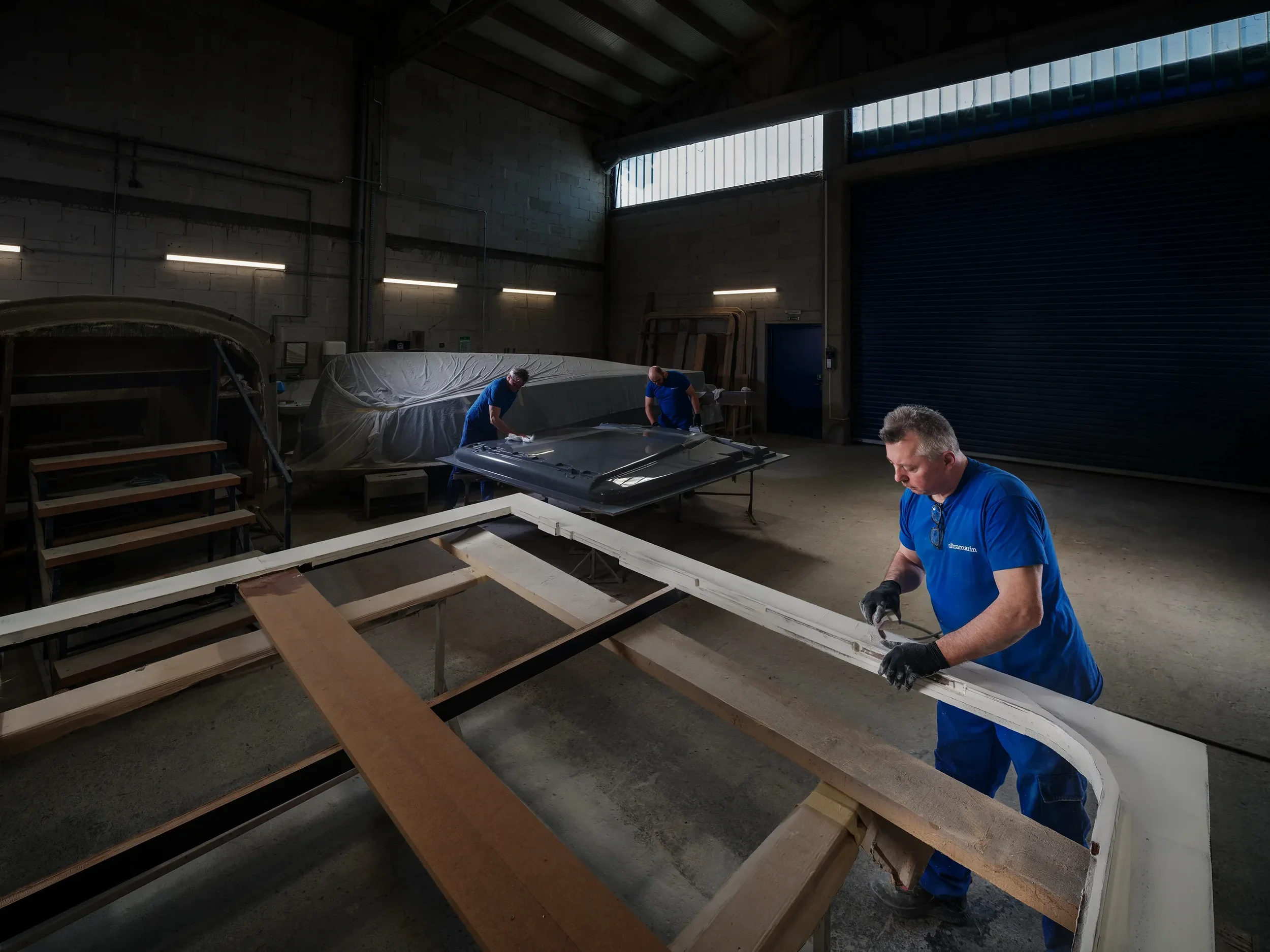

Precision Tooling & Master Models
A superior final product is a direct reflection of the tooling's integrity. Dimensional drift and surface persistence issues in serial production are typically the result of sub-standard master models. Utilizing CNC machining and meticulous manual finishing at our Babinska cesta facility, we manufacture master models that serve as the permanent blueprint for long-term serial stability. We utilize specialized tooling resins and high-performance gelcoats to guarantee surface smoothness and dimensional persistence. This ensures that the 500th part in a production run maintains the exact micron-level tolerances of the first, providing our partners with the "Class-A" finish required for Tier-1 industrial applications.
